How Machines are damaged by Moisturized Air ???



MOISTURE SEPERATOR Compressed Air is vulnerable to Various types of contamination which greatly reduce its value as a power source and which can have a profound effect on the machinery that it operates. Moisture is most common contaminant present, and the one which probably causes the most damage. There is approximately abut 35gms of water in one cubic meter of atmospheric air. A cubic meter of air weighs approximately 1 kg (1000gms). This means 3.5% of air may be moisture, It is harmful in compressed air Pipelines. Over 80% of this nuisance.

Comprises of particles less than 2 microns in size and these easily pass through a typical compressor intake filter. This moisture must be removed from the compressed air line at best it corrodes, erodes pipeline and equipment, damages coatings, contaminates lubricants, washes it from pneumatic loops etc. now 1 NM3 of air will hold only 35 gms of water at ambient temperature. The system will release the liquid water, oil etc. Beyond 35gms i.e. 245gms per IVF of air. The liquid will be in fog/aerosol form and be carried into the pipe work Down-stream. The wet air will generate large quantity of rust and scale. Hence moisture is the most un-welcome product in compressed air system.

ELECTRICALLY OPERATED BUTTERFLY VALVES

Butterfly valves with electric actuator are small in size and light in weight with a compact design. They work completely opposite from their size and offers a high range of output torque. Electric operators offer a reliable method of using the valve even from the remote locations. And that’s why Electric Butterfly Valves are famous among users.

These valves are generally used for basic ON/OFF services but they can be used successfully for choking the water flow. These valves are operated by simply rotating a disc shaped obstructed to 90 degrees. When the slim profile disc is parallel to the flow, the valve is open and when it is rotated for 90 degrees in the perpendicular position of the flow, the valve gets closed.

We have the exclusive stock & are the trader of ELECTRICALLY OPERATED BUTTERFLY VALVES.

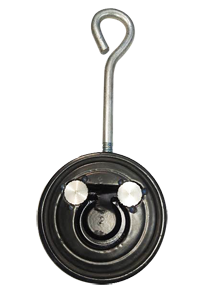

Applications & Salient Features of Wafer check Valve

Wafer check Valve:

Salient Features

• Sturdy but simple design.

• 100% leak proof

• Short length - less space required.

• Light weight.

• Lower pressure drop across the valve.

• Low opening & closing pressures.

• Wide range of materials, temperature & pressure ratings

• Efficient flow characteristics.

• Can be mounted horizontally & vertically.

• Highly economical.

Applications

• Gas and liquids pipelines

• Field gathering systems

• Wellhead injection lines

• Gas export facilities

• Product tank farms

• Chemical processing

• Gas storage caverns

• Power generation

• Design

• Economical

• Space-saving design

• Suitable for horizontal or vertical flow-up service

• Clapper opens in downstream piping

Specifications Sizes 1 1/2” – 24" Pressure Rating Class 150 to 2500 Materials Carbon steel Stainless steel

Kitz Valves Distributors in Mumbai, India

Concorde valves & automation has to turn out to be the principal of Kitz Valves Distributors in Mumbai, India. Concorde valves have built a status for superior-quality, low-maintenance valves in a range of durable materials. Concorde valves furthermore manufacture of Butterfly Valves, Ball Valves, Kitz Valve, Pneumatic Butterfly Valves, Pneumatic Ball Valves, KNIFE GATE VALVE, Pressure Reducing Valve and many more. Materials like Bronze, iron, steel, chrome and stainless steel alloys are mainly used. Kitz low-emission valves offer the best promising solution to decrease traitor emissions from your plant amenities and make the most of your production effectiveness. Concorde valves use a pioneering method to render our patrons with superiority products. In India there are hardly any distributors who provide quality kitz valves products in the Market. Our product importations are from the best manufacturing unit who are ISO authorized. We are well acknowledged for providing the best quality kitz valves products to our patrons. We are amongst the oldest distributors of kitz Valves From Mumbai. We provide products to countless industries in every corner of India. From times of yore, we are in the market giving our Indian industries the quality Kitz valves products. Concorde Valves and automation is also known in as the best kitz valves dealers in India.

We particularly focus on our key factors that are:

• Meeting the needs of industries
• Best Quality Kitz Valves Products

Pulse Jet Valves / Dust Collector

Pulse Jet valves are also called as DUST COLLECTOR. They are indirect type solenoid valves. When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm. Then the diaphragm is suddenly opened. When it is de-energized, air passes through the hole to the chamber which can balance the air pressure and close the valve.

The opening and closing of the valve are done very fast for filter cleaning and consumption of compressed air effectively. Moving parts of the valve are kept small for minimum inertia but KV values are very high. Dust collector systems are very useful for removing solid pollutants or recovering valuables from exhaust gases before discharging them to the atmosphere.

Our offered pulse jet valves are well known for their reliability, durability, effective operation, compact size, efficient controls, and power saving characteristics.

Kitz Micro Ball Valves



Kitz Micro Ball Valves

Product Details:

• Two piece Design
• Full Bore Flanged ball Valve
• ASME 150 Class
• Size from ½” to 8”
• Body & Ball MOC :- CF8M
• Seat : PTFE
• Mode of Operation :
½”to 4” – Lever Operated
6”& 8”- Gear Operated
Actuated valve on request.

DIAPHRAGM OPERATED SOLENOID VALVE | CONCORDE VALVES

 2-2 WAY PILOT DIAPHRAGM OPERATED SOLENOID VALVE

HIGH FLOW DIAPHRAGM OPERATED SOLENOID VALVE, are specially engineered in the construction of Investment Cast CF8 / CF8M / CF3M body with Electro plating for multiple and long lasting operations.

Types 1: Normally close - Energized to Open 2. Normally Open - Energised to Close

Application: Air, Water, Light Oil, Gas, Light Chemical

Size Range : 1/2" To 2" Screwed / Flanged

Solenoid valves are the best for the inflammable media / environment. The Flameproof / Explosion proof solenoid coils are available in such application.

Application

Textile Processing Machinery, Chemical Plants, Water Treatment, Sugar Machinery, Cement Machinery, Pumps, Irrigation,Combustion Equipment, Heat Exchanger, Air Dryer, Pollution Controls, Laundry Equipments and where dependble ON/OFF type control is required.

PILOT DIAPHRAGM OPERATED SOLENOID VALVE

Diaphragm Operated Solenoid Valve are most frequently associated with 2-way solenoid valve. They usually consist of a rubber diaphragm which move up or down within a valve body. This promote an opening or closing alongside a hard seat, thereby shifting the state of the solenoid valve. In direct acting or Diaphragm operated solenoid valve, the media demand has no bearing on the position of the diaphragm. It just changes its state once the solenoid coil is energised and moreover opens or closes, depending on the requirement of the solenoid valve in its resting state (normally closed or normally open).

Pilot Operated Diaphragm Valve are accessible in a wide variety of materials to suit approximately any industrial application and process medium. Valve diaphragm materials include NBR, Viton, EPDM and PTFE, and more unusual resources are available for expert duty. When choose a solenoid valve, it is important to check the chemical compatibility of the valve diaphragm material in order to ensure long life and fitness of the valve in your application.

Concorde Valves & Automation is experts when it comes to supply high performance Diaphragm Operated Solenoid Valve. We will take the time to understand your application, budget and any other special requirements before recommending the correct solution for your application.

We offer a wide variety of 2 Port Solenoid Valve to suit a range of applications. These valves can be essentially classified as Normally Closed or Normally Open based on the valve condition when the solenoid is energized. Further, they can be classified as Direct Acting, Diaphragm Operated, Internal / External Pilot Operated.

Features of Our Pilot Diaphragm Operated Solenoid Valve

2/2 Ways Diaphragm Operated Solenoid Valve has High flow capacity.

Diaphragm Operated Solenoid Valve is Compact in Design & Light in Weight.

Diaphragm Operated Solenoid Valve Need Full Power at All Times to Open and Stay Open

Pilot Diaphragm Operated Solenoid Valve are Tight Shut Off

Diaphragm Operated Solenoid Valve are Widely used for High-Speed Cycling
